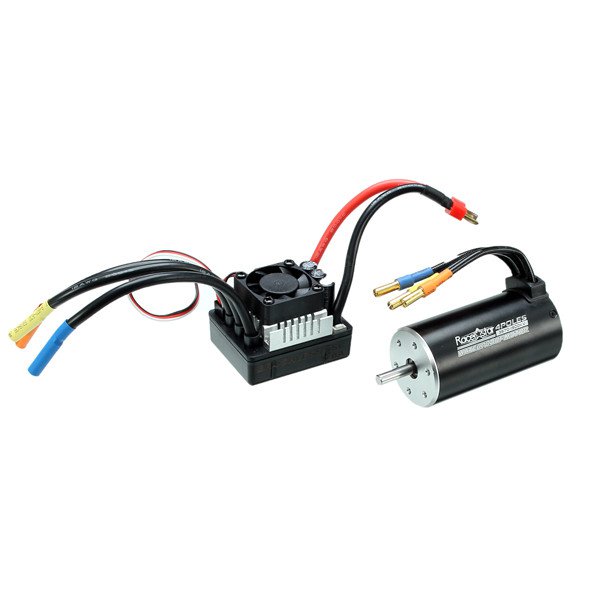

Racerstar 3670 Sensorless Waterproof Brushless Motor 120A ESC W/Program Card

Racerstar 3670 Sensorless Waterproof Brushless Motor 120A ESC W/Program Card
This handles 4S -6S batteries fantastically ! No heat !
This Package Includes:
1 Motor
1 ESC
1 Instruction
1 Program Card
Comprehensive Product Descriptions:
Product Brand: Racerstar
Product Name : 3670 motor & 120A ESC
Waterproof Level: Splash-proof
Motor Specs:
Brand: Racerstar
Max Power: 1600W
Max Voltage: 24V
Max Amps: 66A
Rotor Poles: 4
Max RPM: 60K
Length: 70mm
Diameters: 36mm
Weight: Approx. 275g
Shaft: Φ5mm
Length of Extend Shaft: 17mm
Motor Features:
- 4 pole 12 slot hi-torque motor design
- CNC machined 6061 T6 billet aluminum heatsink can
- High purity copper windings maximizes efficiency
- High RPM ABEC 5 oversized bearings
- Universal fit, fits all 1/10-1/8 brush-less cars/Truggy
- Precision balanced rotor, smoothness for best reliability and maxium RPM
- Stator- super thin 0.2mm laminations
- Removable/replaceable rotor
ESC Specs:
Model: 120A
Cont./Burst Current: 120A/600A
Suitable size Cars: 1/10-1/8
Suitable Brushless Motors: ≥3.5T
Resistance: 0.00035ohm
Battery: 2-6 cells Lipo
4-18 cells NiMH
BEC Output 6.1V/3A
(switch mode)
Dimensions:41x51x36mm
Waterproof Level Splash-proof
ESC Features:
- Specially designed for RC car with excellent start-up, acceleration and
linearity features
- Compatible with sensorless brushless motor
- The strong resistant current capability, excellent heat dissipation
- Multiple protection features: low voltage cut-off protection for lithium or
nickel battery / over-heat protection / throttle signal loss protection /
motor blocked protection
- Easily programmed and compatible with pocket-sized program
card(included)
Please select desired KV Value Motor ! Leave Seller a note !
Current Available KV Sizes : 1900KV 2150KV 2650KV
