$443.56
On Hold

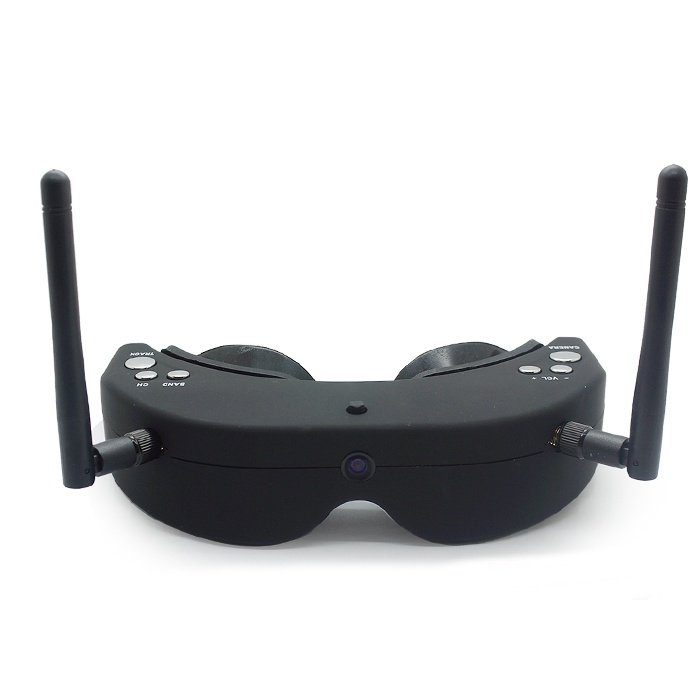

Skyzone SKY01S Upgraded 5.8G 48CH FPV Goggles Auto Search Video Headset With Front Camera
6 available
Details
Shipping: Australia: $9.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Skyzone SKY01S Upgraded 5.8G 48CH FPV Goggles Auto Search Video Headset With Front Camera
Package Includes:
1 Skyzone 01S FPV goggles
2 Antenna
1 Futaba data cable
1 JR data cable
1 WFLY data cable
1 AV cable
1 Power cable
1 Carry case
These SKY01S FPV goggles have two built in 5.8GHz receiving modules, two antenna ports and Binocular Display modules, 5.8GHz receiving working in diversity mode. They Support 6 bands and 48 channels.
Brief Description:
Binocular Display FOV 30 degrees (Diagonal)
Resolution 854X480(WVGA), 1,229,760 color sub‐pixels
Brightness 350cd/㎡
Interpupillary distance(IPD) 60‐68mm Adjustable
Wireless Receiver ISM 5.8GHz 48 Channel, Diversity receiver.
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
A 5865M 5845M 5825M 5805M 5785M 5765M 5745M 5725M
B 5733M 5752M 5771M 5790M 5809M 5828M 5847M 5866M
E 5705M 5685M 5665M 5645M 5885M 5905M 5925M 5945M
F 5740M 5760M 5780M 5800M 5820M 5840M 5860M 5880M
R 5658M 5695M 5732M 5769M 5806M 5843M 5880M 5917M
L 5362M 5399M 5436M 5473M 5510M 5547M 5584M 5621M
Sensitivity ‐90dBm±1dBm
Antenna port 2 X SMA,50ohm
Video Standard NTSC/PAL
Video output level 1.0Vp‐p Typ / 75ohm
Audio output level 1.0Vp‐p Typ / 10Kohm
Front Camera
FOV 120 degrees (Diagonal)
Resolution 640X480(VGA)
FOCAL LENGTH f=0.95mm
F/NO F/NO=2.0
Head Tracker Sensor
Magnetic, Inertial and gyro
Output: PPM 8 channel, Optional 5‐6CH,5‐7CH,5‐8CH,6‐7CH,6‐8CH,7‐8CH
AV Port
Div. AV OUT(3.5mm4P) Diversity Video,Audio output
EAR OUT(3.5mm3P) 32Ω/75mW or 16Ω/105mW, With volume control
AV IN(3.5mm4P) Video,Audio input
Power Supply DC IN DC 7~28V/ 1A
Power Consumption 12V input: 4.3W
Dimensions 168(L)X92.5(W)X41(H)mm (Not include prominent part)
Operating Temperature: 0℃~+60℃
Great Features !
IPD adjustable
Built-in wide angle front view camera
Built-in dual-axis head tracking system
High resolution: 854*480(WVGA), 1230K pixels
High sensitivity total 48 channels receiver
Wide voltage supported: 7V-28V(2S-6S lipo battery)
Supports Upgrading
Currently Ships:
Insured Priority Express Mail 6-12 Business Days all destinations.
U.S. Shipping Carriers FED-X or DHL
