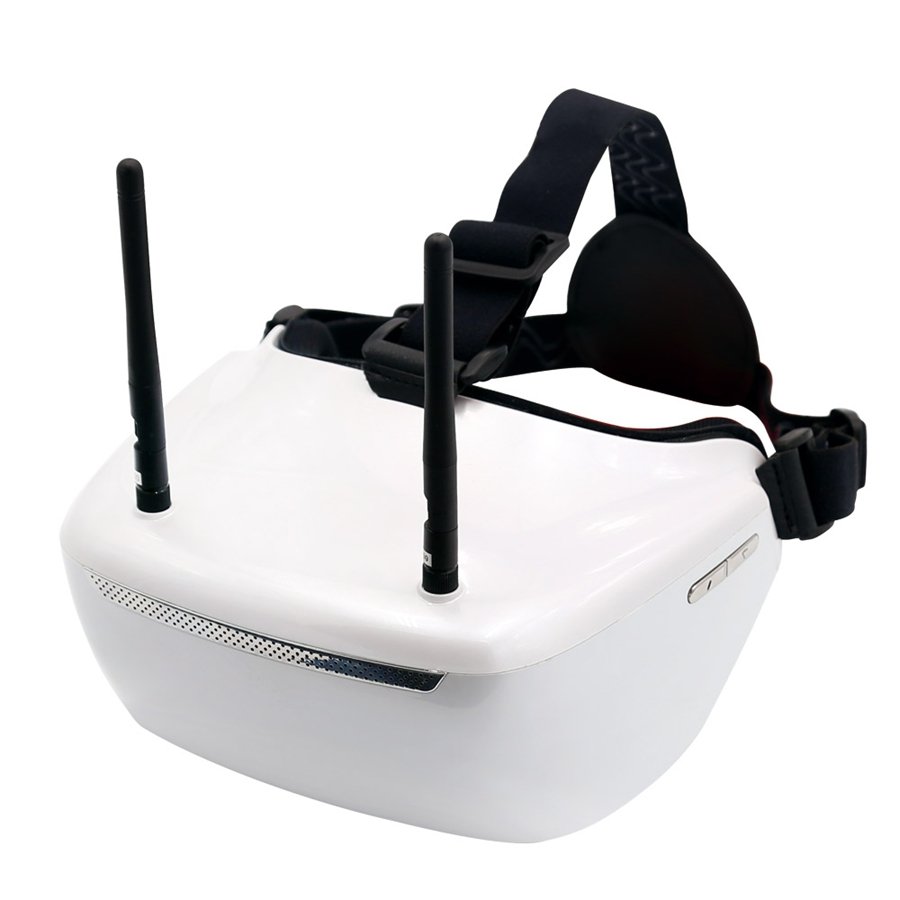

Skyzone SJ-H01 1960x1080P 2D 3D FPV Goggles AV Video Headset/ HD Port Head Tracker For RC Drone
6 available
Details
Shipping: Australia: $9.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Skyzone SJ-H01 1960x1080P 2D 3D FPV Goggles AV Video Headset/ HD Port Head Tracker For RC Drone
Package Includes:
1 Skyzone SJ-H01 3D FPV Goggles
2 5.8G 2dBi Antenna
1 HD port A-D Cable
1 DC Cable
1 AV Cable
1 Mini USB Cable
1 FUTABA Data Cable
1 JR Data Cable
Brief Description:
Product Brand Name : Skyzone
Product Name : SJ-H01 Goggles
Display
FOV : 100 Degree
Resolution : 1960*1080
Brightness : 450cd/㎡
Interpupillary Distance (IPD) : 64mm
Ratio : 16:9, 4:3, Full Screen(default)
5.8G 40CH Diversity Receiver :
Sensitivity : -90dBm±1dBm
Antenna Port : 2 x RP-SMA, 50ohm
Freqs.:
A 5865 MHZ 5845 MHZ 5825 MHZ 5805 MHZ 5785 MHZ 5765 MHZ 5745 MHZ 5725 MHZ
B 5733 MHZ 5752 MHZ 5771 MHZ 5790 MHZ 5809 MHZ 5828 MHZ 5847 MHZ 5866 MHZ
E 5705 MHZ 5685 MHZ 5665 MHZ 5645 MHZ 5885 MHZ 5905 MHZ 5925 MHZ 5945 MHZ
F 5740 MHZ 5760 MHZ 5780 MHZ 5800 MHZ 5820 MHZ 5840 MHZ 5860 MHZ 5880 MHZ
R 5658 MHZ 5695 MHZ 5732 MHZ 5769 MHZ 5806 MHZ 5843 MHZ 5880 MHZ 5917 MHZ
Head Tracker
Sensor : Magnetic,Inertial and gyro
Output : PPM 8 channel
Video Standard : (Optional) CH5/CH6,CH5/CH7,CH5/CH8,CH6/CH7,CH6/CH8,CH7/CH8
AV Signal
Video Output Level : NTSC/PAL
Audio Output Level : 1.0Vp-p Typ./75ohm
MINI USB AV : 1.0Vp-p Typ./10Kohm
AV Port
EAR OUT(3.5mm3P) : Diversity Video/Audio output, Video/Audio input
HDMI IN : Stereo 16 Ω/150mW
Micro HD Port/D-Type : HD Port 1.4 specification
Power Supply
DC IN : DC 10V-26V/1A
Power Consumption : 12V Input, 6.7W/RF Mode
Dimensions: 164(L)x194(W)x108(H)mm(not include prominent part)
Weight : 490g
Operating Temp. : -10℃ - +60℃
