$442.17
On Hold

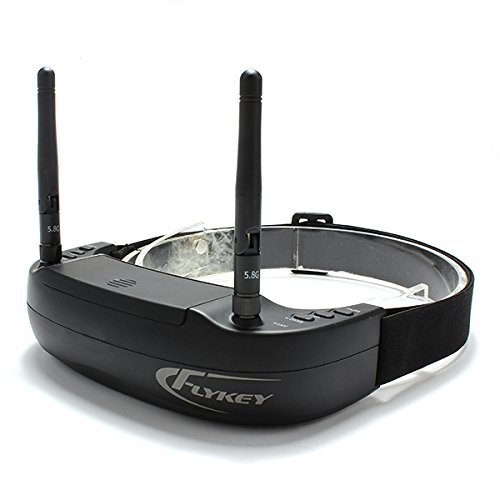

FLYKEY RAFALE V1 5.8G 48CH 854x480x3 WVGA FPV Goggles Video Headset With 1000mAh 3.7V Battery
7 available
Details
Shipping: Australia: $13.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
FLYKEY RAFALE V1 5.8G 48CH 854x480x3 WVGA FPV Goggles Video Headset With 1000mAh 3.7V Battery
Package Includes:
1 5.8G 48CH RAFALE V1 Goggles
2 2.5mm AV Cables
1 XT-60 Power Cable
1 3.7V 1000mA Battery
1 Case
2 5.8G 2dBi Antenna
1 3.5mm to 2.5mm Cable
2 Sponge Masks
Brief Description:
Product Brand : FLYKEY
Product Name : RAFALE V1 Goggles
LCD Display:
LCD Size : 0.32''(Diagonal)
Display Active Resolution : 854 x 480 x 3(WVGA)
Ratio : 16:9
IPD : 55mm - 65mm adjust
LCM Luminance : 350 cd/㎡(center point)
5.8G Receiver:
Frequency: ISM5.6GHz-5.95GHz 48CH
Receive Mode: Diversity Receiver
Video Output Level : 1V±0.2Vp-p/75Ω
Audio Output Level : 0.5-2.0Vp-p/10Ω
TV System : PAL/NTSC/AUTO
RF Sensitivity Less than -92dBm(15dBuV)
Auto Search
Antenna Connector : SMA
System:
Battery: 1000mA/3.7V LiPo(Removeable)
Working Voltage : DC 5-28V
Charging Voltage : DC 5-28V
Supply Current : Less than 350mA/12V DC
Charging Current : Less than 500mA/12V DC
OSD Menu Hide : Support
Interface:
AV OUT : 2.5mm x 1(Diversity OUT)
AV IN : 2.5mm x 1
Headphone Output : 3.5mm x 1
DC IN : OD/ID:3.5/1.2mm x 1
5.8G ANT : SMA x 2
Size : 168 x 80 x 45mm
Weight : 160g( with battery )
Features
854 x 480 x 3 (WVGA)Display LCD
Built-in Lithium Battery
With OSD menu
48CH Diversity Receiver
Frequency:
CH /Band CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8
A(A) 5865MHz 5845MHz 5825MHz 5805MHz 5785MHz 5765MHz 5745MHz 5725MHz
b(B) 5733MHz 5752MHz 5771MHz 5790MHz 5809MHz 5828MHz 5847MHz 5866MHz
C(E) 5705MHz 5685MHz 5665MHz 5645MHz 5885MHz 5905MHz 5925MHz 5945MHz
d(F) 5740MHz 5760MHz 5780MHz 5800MHz 5820MHz 5840MHz 5860MHz 5880MHz
E(R) 5658MHz 5695MHz 5732MHz 5769MHz 5806MHz 5843MHz 5880MHz 5917MHz
F 5362MHz 5399MHz 5436MHz 5473MHz 5510MHz 5547MHz 5584MHz 5621MHz
Currently Ships:
Expedited Express 3-8 business Days U.S. Shipping Carriers FED-X or DHL
Insured Priority Express Shipping 6-15 Business Days U.K. and all other destinations.
