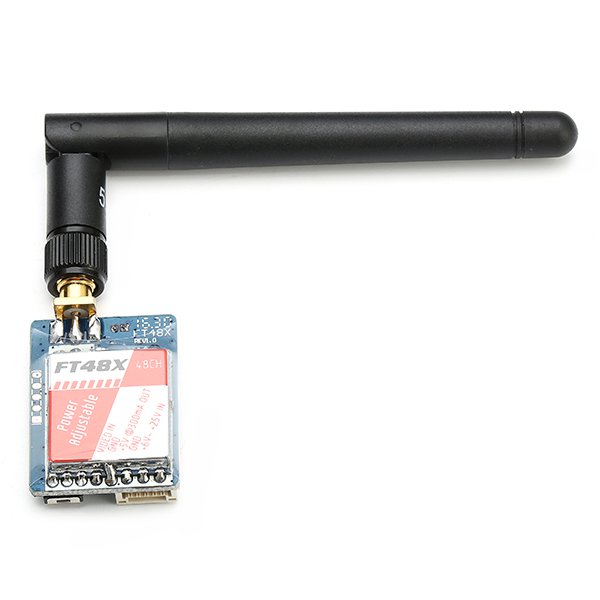

FT48X 5.8G 48CH 0.25/25/200/600mW Adjustable Video Transmitter FPV Racer VTX Raceband
7 available
Details
Shipping: Australia: $9.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
FT48X 5.8G 48CH 0.25/25/200/600mW Adjustable Video Transmitter FPV Racer VTX Raceband
Package Includes:
1 Transmitter
Brief Description:
Transmitting Frequency: ISM 5.35GHz-5.95GHz 48 CH
Operating Voltage : +6.5V - +25.0V
Supply current : 250mA±20mA @+12V @600mW
Video Input Level: 1V±0.2Vp-p/75Ω
Audio Input Level: 0.5-2.0Vp-p/10KΩ
TV System: PAL/NTSC/SECAM (AUTO)
Audio Carrier Frequency: 6.5MHz
RF Output Power: 0.25mW(-6dBm±0.5dBm)
25mW(14dBm±0.5dBm)
200mW(23dBm±0.5dBm)
600mW(28dBm±0.5dBm)
Connector: SMA ,JST-GH 1.25mm 5P
Weight: 9g
Dimensions (L x W x H): 31x22x8mm
Operating Temperature: -10℃ - +85 ℃
Features:
48 Channel,with Raceband
RF power can be adjusted: 25/200/600mW RF Power output
Large input voltage range ;
Not affect by 2.4GHz R/C Radios ;
Integrally molded case,Mini size, Power indicator, easy to carry ;
LED display channel; LED display RF Power;
Key mode control channel,group and RF Power Adjusted;
5V output with 300mA automatic recovery fuse and LC filter!
