$59.79
On Hold

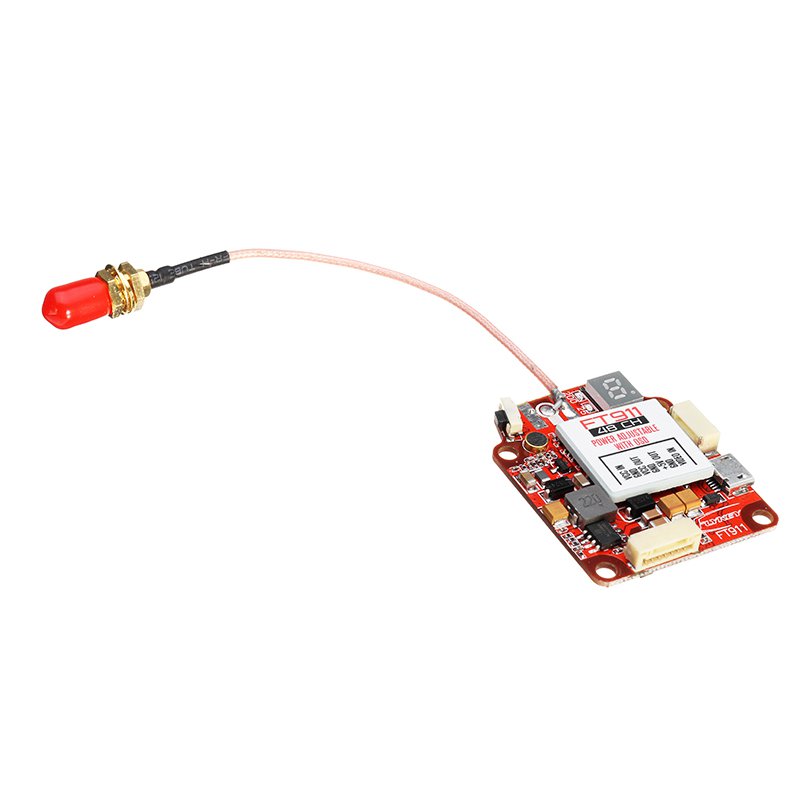

FT911 5.8G 48CH 0/25/200/600mW w/ OSD Adjustable Video Transmitter FPV Racer VTX Raceband SMA/RP-SMA
6 available
Details
Shipping: Australia: $9.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
FT911 5.8G 48CH 0/25/200/600mW w/ OSD Adjustable Video Transmitter FPV Racer VTX Raceband SMA/RP-SMA
Package includes:
1 FT911 Transmitter
Product Description :
Transmitting Frequency: ISM 5.35GHz-5.95GHz 48 CH
Operating Voltage : +6.5V~+25.0V
Supply current : 250mA±20mA @+12V @600mW
Video Input Level: 1V±0.2Vp-p/75Ω
Audio Input Level: 0.5~2.0Vp-p/10KΩ
OSD TV System: PAL
Audio Carrier Frequency: 6.5MHz
RF Output Power: 0mW
25mW(14dBm±0.5dBm)
200mW(23dBm±0.5dBm)
600mW(28dBm±0.5dBm)
Antenna Connector: SMA/RP-SMA Female Connector
Weight: 10g
Dimensions (L x W x H): 36x43.5x6mm
Operating Temperature: -10℃~+85 ℃
Features:
48 Channel, with Raceband
RF power can be adjusted: 0/25/200/600mW RF Power output
With OSD
Large input voltage range
Not affect by 2.4GHz R/C Radios
Integrally molded case, Mini size, Power indicator, easy to carry
LED display channel; LED display RF Power
Key mode control channel, group and RF Power Adjusted
5V output with 300mA automatic recovery fuse and LC filter
Size: 36x43.5x6mm
With 4 mounthing holes
Optional Connector :RP-SMA Female or SMA Female
Leave Seller a note !
Currently Ships:
Insured Priority Express Shipping 6-12 Business Days U.S.,U.K. and all other destinations.U.S. Shipping Carriers FED-X or USPS
Package includes:
1 FT911 Transmitter
Product Description :
Transmitting Frequency: ISM 5.35GHz-5.95GHz 48 CH
Operating Voltage : +6.5V~+25.0V
Supply current : 250mA±20mA @+12V @600mW
Video Input Level: 1V±0.2Vp-p/75Ω
Audio Input Level: 0.5~2.0Vp-p/10KΩ
OSD TV System: PAL
Audio Carrier Frequency: 6.5MHz
RF Output Power: 0mW
25mW(14dBm±0.5dBm)
200mW(23dBm±0.5dBm)
600mW(28dBm±0.5dBm)
Antenna Connector: SMA/RP-SMA Female Connector
Weight: 10g
Dimensions (L x W x H): 36x43.5x6mm
Operating Temperature: -10℃~+85 ℃
Features:
48 Channel, with Raceband
RF power can be adjusted: 0/25/200/600mW RF Power output
With OSD
Large input voltage range
Not affect by 2.4GHz R/C Radios
Integrally molded case, Mini size, Power indicator, easy to carry
LED display channel; LED display RF Power
Key mode control channel, group and RF Power Adjusted
5V output with 300mA automatic recovery fuse and LC filter
Size: 36x43.5x6mm
With 4 mounthing holes
Optional Connector :RP-SMA Female or SMA Female
Leave Seller a note !
Currently Ships:
Insured Priority Express Shipping 6-12 Business Days U.S.,U.K. and all other destinations.U.S. Shipping Carriers FED-X or USPS
