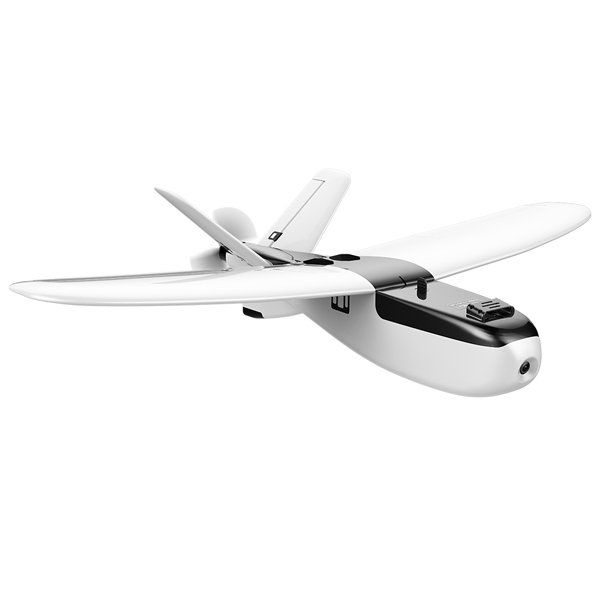

ZOHD Nano Talon 860mm Wingspan AIO HD V-Tail EPP FPV RC Airplane PNP With FPV System
6 available
Details
Shipping: Australia: $13.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
ZOHD Nano Talon 860mm Wingspan AIO HD V-Tail EPP FPV RC Airplane PNP With FPV System
Package Includes:
1 Nano Talon Airframe
1 Pre-assembled motor, esc, servos, gyro, hardware.
1 HD camera
1 5.8G VT
Product Information
This 860mm Wingspan Nano Talon is a portable edition of the Talon Airframe series. It is super easy to hand-launch and fly because of the gyro, This Nano Talon is very convenient to carry with because the detachable mainwing and tail wing can be detached easily by plugs and magnets. The built-in servo structure makes the airfoil more aerodynamic, and avoid damage even in a crash. The inside room and extra bottom hatch are also huge for more FPV gear.
Brief Description:
Product Brand Name: ZOHD
Product Name: Nano Talon
Wingspan: 860mm/33.85in
Length: 570mm/22.44in
Rudder: Yes (V-tail)
Flaps : No
Aileron: Yes
Flying Weight: 361g(w/o FPV gear)
Material: Crash Resistable EPP
Weight: 700g
CG: 3.5cm from the wing leading edge(mark under the wing)
Color: White + Black
Motor: ZOHD 2204 1870KV BL
Motor Shaft Diameter: 5mm
ESC: 30A W/1A BEC(XT60 connector)
Servos: 3pcs 8g digital servo
Propeller: 6x3 Inch
Flying speed: 12 to 90km/h
Recommended Accessories:
Battery: 3S 1300-1800mAh XT60 connector
Radio: 6CH
Tech. Note:
Upgrade the stock ESC !
Features:
* Built-in Gyro make the Nano Talon flys super stable, and easy to control.
* Autonomous fly directly after hand-launch, never crash when take-off.
* EPP molded wing, pre-built-in Carbon Fiber spar for enhancement, light and flexible plus crash resistence.
* Detachable mainwing and tailwing for easy transport, and easy to change wing by simple plug.
* Mainwing connected to fuselage by buckle, will be disconnect and release during crash.
* “NACA”air-intake in nose and air-outlet in tail for better cooling on FPV gear.
* Extra rooms in canopy and cabin for FPV gear, bottom hatch provide bonus rooms for more FPV equipment
* Self tighten prop nuts for secure prop mounting
Camera and Transmitter Specs.
FPV Camera: Runcam Split WDR FPV Camera with WIFI:
Color : Orange
FOV: FPV FOV 130° / Recording FOV 165°
Video Resolution: 1080@60fps / 1080@30fps / 720@60fps
Video Files: MOV
Image Resolution: 2 Megapixels
TV Output: NTSC / PAL Switchable
Real-Time Audio Output: Yes
Interface: Micro USB / UART
Max Micro SD Card Supported: 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II)
WiFi Module: Support (Removable)
Dimensions: PCB 36x38mm / Lens Module 22x20mm
Power Input: DC 5V
Working Current: 650 mAh
Weight: 21g
Features :
* HD recording, same effect as Runcam 3
* Supper WDR FPV image with low latency
* Recording and FPV at the same time
* 26g super light
* Camera + Board split, main board and FC can be installed on frame kit, camera is same as mini Swift.
* Lens is removable
Video Transmitter:
Video Format : NTSC/PAL
Channel:40 CH
Operating Voltage: 7V-24V
Supply Current : 600mW
Dimensions: 35x25x7mm
Weight: 11g
Currently Ships:
Expedited Express 3-8 business Days U.S.(U.S. Shipping Carriers FED-X or DHL) & U.K.destinations.
Express Mail Service 7-15 business days all other destinations.
