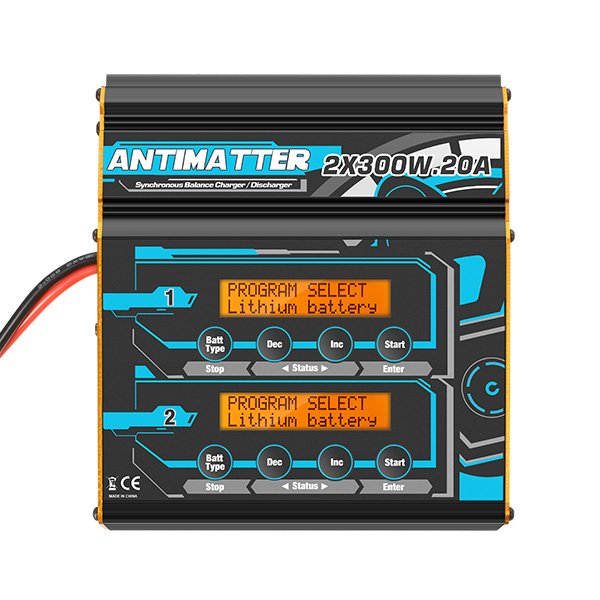

Charsoon Antimatter 2x300W 20A Lipo Battery Balance Charger Discharger

Charsoon Antimatter 2x300W 20A Lipo Battery Balance Charger Discharger
Package Includes:
1 Charsoon 0620duo Battery Charger
Manual

Brief Description:
Product Brand: Charsoon
Product Model : Antimatter
Input voltage: DC 10-28V
Charge power: max. 300 Watts
NiCd/MH: 1-17 cells
LiIo/LiPo/LiFe: 1-6 series
Pb battery: 1-12 series(2-24V)
Current drain for balancing (Less than)350mA
Balance accuracy (Less than) 10mV
Charge current
Channel 1 :0.05 to 20.0A
Channel 2 : 0.005 to 20.0A
Discharge current
Channel 1: 0.05 to 20.0A
Channel 2: 0.005 to 20.0A
Battery setup memories: 10
Size 150x170x60mm
Weight: 820g

Features:
+ High Power, High Current, High-Performance Power Conversion Circuit
This charger uses advance Synchronous buck-boost DC/DC converter technology with an output conversion efficiency that can reach over 90%. This is not only save power and reduce heat build up but also makes the charger more compact and conveniently mobile.
+ Support Various Battery types
The charger can be used with Lipo, Lilo, LiFe, Ni-Cd, NiMH and Pb battery.
+ Data Storage
Convenient set of 10 battery profile memories that can be saved and loaded by number.
+ Various Charging/Discharging Settings and Cycles
For lithium batteries: balance charging, normal charging, fast charging, storage, discharging, ext-discharging, charge/discharge cycling and battery monitoring.
+ For NiCd/NiMH batteries: charging-auto,charging-manual,discharging,charge/discharge cycling and forming charge.
For Pb batteries: charging and discharging.
+ Unique Lithium Battery Expanding Discharging Program
When you connect the external capacity resistance,you can use it as the maximum discharge power capacity - 600W(30V/20A).
+ Unique Lithium Battery Monitor Program
When you use other equipment to charge or discharge a Lithium pack,you can use the charger to monitor the per-cell voltages, battery temperature and process time. If any individual cell appears over-charged or over-discharged or the pack is too hot or the process has gone on for too long,the charge will generate an alarm sound and the related information will blink.
+ Foam-cut Drive
In this mode, the charge acts as a convenient power supply for a hot wire foam cutter.
+ Battery Interior Resistance Measurement
The charger can not only measure the internal resistance of the battery pack, and also can measure the per-cell internal resistance (only available for lithium battery).
+ Polarity Protection Function
The charger has protection for reversed polarity(input or output), low input voltage, battery temperature, charging capacity and time overrun.
+ Electric Motor Test Mode
This mode can be used to run-in electric motors,test motor parameters and performance,check tolerances etc.
+ Flash Storage
The charger has a 16Mbit flash storage,which can log offline charge and discharge data in 36 hours.
