$188.62
On Hold

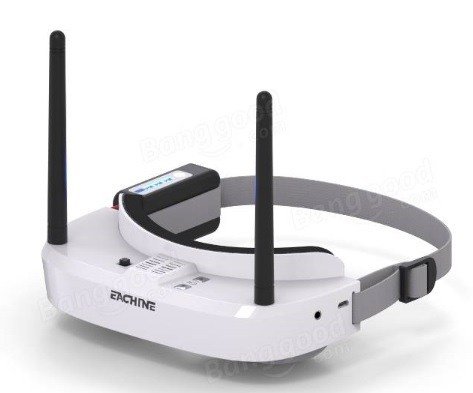

Eachine EV100 720x540 5.8G 72CH FPV Goggles
5 available
Details
Shipping: Australia: $9.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Eachine EV100 720x540 5.8G 72CH FPV Goggles With Dual Antennas/Fan 7.4V 1000mAh Battery
Package Includes:
1 Eachine EV100 5.8G 72CH FPV Goggles
1 7.4V 1000mAh Battery
2 RP-SMA 3dBi Antenna
User Manual
Comprehensive Description
Product Brand : Eachine
Product Name : EV100
Size : 165mmx76mmx30mm
Weight : 221g(with battery 57g and antenna 13g)
Package Weight : 400g
Display
Resolution : 720x540
FOV : 28° diagonal
IPD : 58-68mm
Ratio : 4:3
Focal length adjusting: Under 400 degree of myopia and hyporopia 150 degree
Specifications
Frequency : 5.8G 5333Mhz-5945Mhz
Sensitivity : Less than or equal to -93dB
Antenna Impedance : 50Ω
Antenna Gain : 3dBi
Antenna Connector : RP-SMA
Video Formate : NTSC/PAL
Supports AV IN/OUT
Supports Focal Length/Brightness/Contrast Adjustment
Suports Firmware Upgrading
Power Input : 7.4V
Low Voltage : 6.8V
Battery : 2S 7.4V 1000mAh
Charging : USB Cable(not included)
Working Temp. : -10℃-+40℃
Features
Supports AV Input and Output
Supports External HDMI to AV Module
Supports External DVR module
Single receiver with Dual Antennas, enhances reception and stabilizes performance.
built in Fan, defogs the glasses for better visual experience.
Adjustable focal length,allows pilots under 400 degree myopia can view directly via naked eye
Adjustable IPD 58~68mm
Auto Search function, can auto search all frequencies and select the channel with strongest signal.
Has 3 Racing Modes : 4/6/8 pilots. 60-80MHz interval between adjacent channels greatly decrease interference.
Has Debug Mode, requires a corresponding VTX which support pitmode and extra frequency 5300MHz
Currently Ships:
U.S. Shipping destinations Carriers FED-X or USPS 3-8 business days
Insured Priority Express Shipping 6-15 Business Days U.K. and all other destinations.
Package Includes:
1 Eachine EV100 5.8G 72CH FPV Goggles
1 7.4V 1000mAh Battery
2 RP-SMA 3dBi Antenna
User Manual
Comprehensive Description
Product Brand : Eachine
Product Name : EV100
Size : 165mmx76mmx30mm
Weight : 221g(with battery 57g and antenna 13g)
Package Weight : 400g
Display
Resolution : 720x540
FOV : 28° diagonal
IPD : 58-68mm
Ratio : 4:3
Focal length adjusting: Under 400 degree of myopia and hyporopia 150 degree
Specifications
Frequency : 5.8G 5333Mhz-5945Mhz
Sensitivity : Less than or equal to -93dB
Antenna Impedance : 50Ω
Antenna Gain : 3dBi
Antenna Connector : RP-SMA
Video Formate : NTSC/PAL
Supports AV IN/OUT
Supports Focal Length/Brightness/Contrast Adjustment
Suports Firmware Upgrading
Power Input : 7.4V
Low Voltage : 6.8V
Battery : 2S 7.4V 1000mAh
Charging : USB Cable(not included)
Working Temp. : -10℃-+40℃
Features
Supports AV Input and Output
Supports External HDMI to AV Module
Supports External DVR module
Single receiver with Dual Antennas, enhances reception and stabilizes performance.
built in Fan, defogs the glasses for better visual experience.
Adjustable focal length,allows pilots under 400 degree myopia can view directly via naked eye
Adjustable IPD 58~68mm
Auto Search function, can auto search all frequencies and select the channel with strongest signal.
Has 3 Racing Modes : 4/6/8 pilots. 60-80MHz interval between adjacent channels greatly decrease interference.
Has Debug Mode, requires a corresponding VTX which support pitmode and extra frequency 5300MHz
Currently Ships:
U.S. Shipping destinations Carriers FED-X or USPS 3-8 business days
Insured Priority Express Shipping 6-15 Business Days U.K. and all other destinations.
