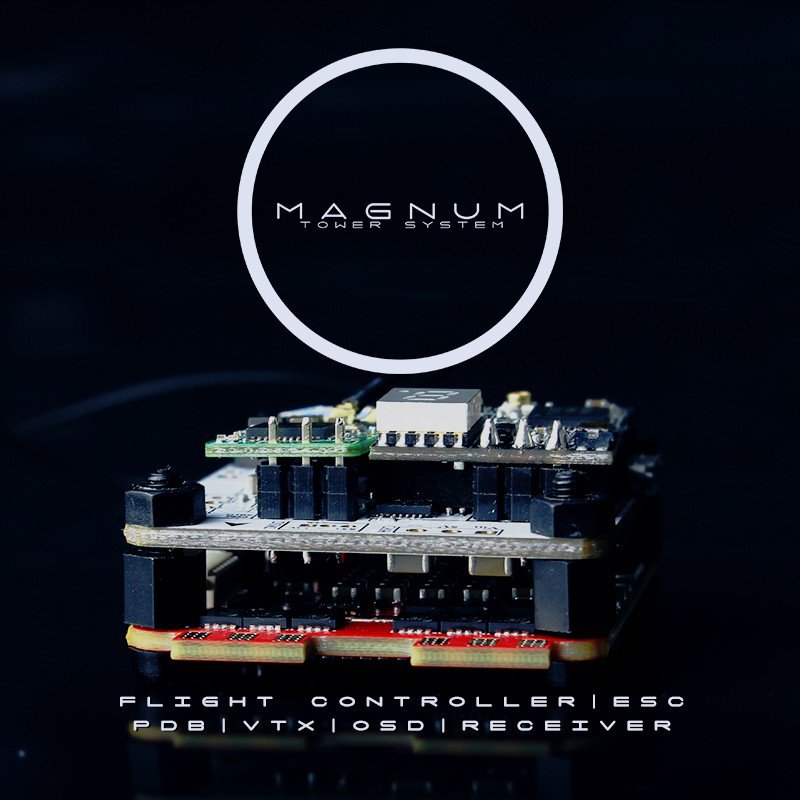

Emax F4 Magnum All In One FPV Stack Tower System

Emax F4 Magnum All In One FPV Stack Tower System F4 OSD 4 In 1 BLHeli_S 30A ESC VTX FrSky XM+ RX
Package Includes:
1 4in1 30A bullet ESC
1 F4 flight controller
1 XM+ FrSky SBUS receiver
1 25/200mw VTX
1 B-017 XT60 female connector
1 Hot-shrinkable tube Φ4.5*0.2*L20mm red
1 Hot-shrinkable tube Φ4.5*0.2*L20mm black
1 Silicon wire 14AWG L=80mm red
1 Silicon wire 14AWG L=80mm black
1 Antenna adapter with SMA female connector L=80mm
1 5.8G Dipole Whip antenna L=100mm
9 Nylon nuts M3 black
5 Nylon screws M3x6 black
5 Nylon posts M3*5+6mm black
User manual

Features
6-in-1 main board: F4 FC + BetaFlight OSD + LC filter + 5V 3A BEC + 16MB black box + buzzer
5.8G 48CH VTX, 25mW / 200mW switchable. Also includes a 5.8G whip antenna and SMA adapter
FrSky XM+ 16CH SBUS receiver with RSSI. Possible to connect RX of other brands via the RX pads
Bullet 30A 4-in-1 ESC + current sensor, as well as freedom to choose DShot, Multishot, Oneshot125

Specifications
6-in-1 Main Board
Flight controller ( OMNIBUSF4 firmware )
STM32F405 MCU
MPU6000 accelerometer / gyro ( connected via SPI )
Onboard BetaFlight OSD
Onboard buzzer
Integrated 5V 3A BEC
Integrated LC filter
Dedicated PPM / SBUS receiver input
Onboard high-capacity 16MB black box flight log recorder
3 UART pads
Addressable LED pad
Video Transmitter

Frequency bands: 5362 – 5945MHz
Channels: 48 ( band / channel chart can be found on the manual )
Power: 25 / 200mW switchable
Supply voltage: 4.5 – 5.5V

4-in-1 ESC
Continuous current: 4 x 30A
Burst current: 4 x 40A
Supply voltage: 2 – 4S LiPo
Processor: EFM8BB21F16G 50MHz MCU
Firmware: BLHeli – S
Supports DShot, Multishot,Oneshot125
Top quality MOSFET
3oz high TG PCB board
Onboard current sensor

FrSky XM+ Receiver
D16 Mode
16-channel SBUS output
RSSI on Channel 15
Tech Note: It possible to connect other brands of Serial or PPM via the dedicated RX pads.
