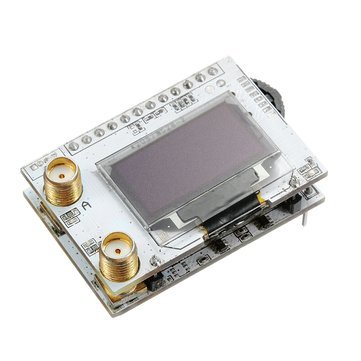

Eachine PRO58 RX Diversity 40CH 5.8G OLED SCAN VRX FPV Receiver for FatShark Goggles
Package Includes :
1 5.8G 40CH Diversity RX
Select mode when placing order
Mode:
RP-SMA Female or SMA Female

Brief Description :
Product Brand : Eachine
Product Name : PRO58 RX
Frequency : 5.8G
Channel : 40CH
Consumption : 1.8-2W
Size : 42 x 30 x 25mm (check detail dimensions on picture)
Weight : 23g

Specifications:
Duo two way working Signal/Diversity;
All frequencies scanning, with result selectable;
Easy and fast to show wireless information;
Great RX part for FatShark or similar Goggles;
40ch RaceBand;
Sensitivity: -92dBi;
5V working, power from goggles;
Partially control by goggle buttons, the ch+ and ch-;
SMA and RP-SMA versions both available;
Built-in beeper to indicate your operations.

Frequency :
Build in 5.8G 40CH Raceband receive
Frequencies:
Band A 5865 5845 5825 5805 5785 5765 5745 5725
Band B 5733 5752 5771 5790 5809 5828 5847 5866
Band E 5705 5685 5665 5645 5885 5905 5925 5945
Band F 5740 5760 5780 5800 5820 5840 5860 5880
Band R 5658 5695 5732 5769 5806 5843 5880 5917

Features:
Simple and easy interface shows you most useful information.
Easy to use up-down-select 3 ways button
Compatible with Fatshark Telepoter V3, Dominator V2 & V3 & SE and Fatshark HD V1, V2 & V3 goggles
Excellent 5.8G performance.
