$47.21
On Hold

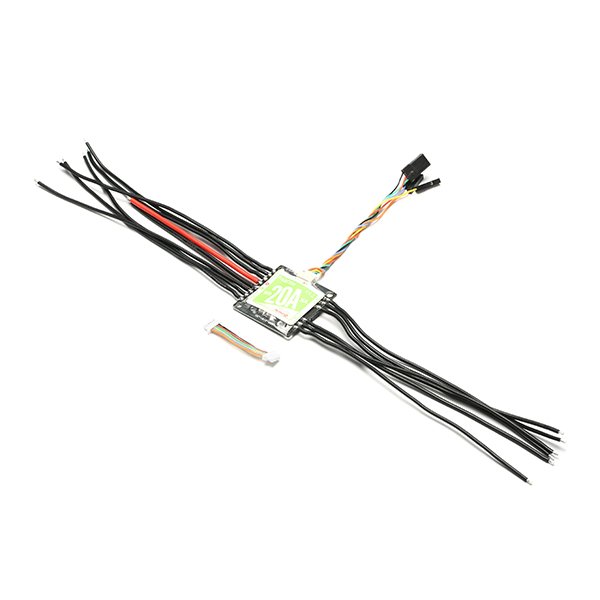

Racerstar RS20Ax4 20A 4 in 1 Blheli_S Opto ESC 2-4S Support Dshot150 Dshot300_Sold Out
8 available
Details
Shipping: Australia: $9.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Racerstar RS20Ax4 20A 4 in 1 Blheli_S Opto ESC 2-4S Support Dshot150 Dshot300 for FPV Racer
Package Includes:
1 RS20Ax4 20A 4 in 1 ESC
1 Mounting Screws( bag)
Product Specification:
Product Brand : Racerstar
Product Name: 20A 4 in 1 Blheli_S Opto 2-4S ESC
Model: RS20Ax4
Input Voltage: 2-4S
Con.Current:20A
Peak Current(10s):25A
BEC:NO
Programming :YES
Installing Distance: 30mm
Weight:19g
Size(PCB):36x36mm
Great Features !
-with Blheli_S firmware
-4 in 1 ESC, more easier to install
-with 24MHz BB1 Clip
-Support oneshot42 multishot, Dshot150 and Dshot300
-Small size and light weight
-Rev 16.2 Fixed bug that prevented temperature protection
-Improved robust to very high input signal rates
-Beeps can be turned off by programming beep strength to 1
-Throttle calibration difference is checked to be above required minimum before storing
-Throttle calibration max is not stored until successful min. throttle calibrated.
Tech. Note: The cable was updated with 5P Cable.Note photos for explanation.The red wire is not connected to its linear regulator, but it still has it. The regulator outputs close to 4 volts.The voltage is used to power itself only. Not recommended to use it to power the rest of electronics. The regulator will likely overheat.
Currently Ships:
Expedited Express 3-8 business Days U.S. Shipping Carriers FED-X or USPS.
Insured Priority Express Mail 6-10 Business Days U.K. and other destinations.
