$55.55
On Hold
FrSky X4R-SB 2.4G 16CH ACCST Telemetry Full Range Receiver
6 available
Details
Shipping: Australia: $9.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

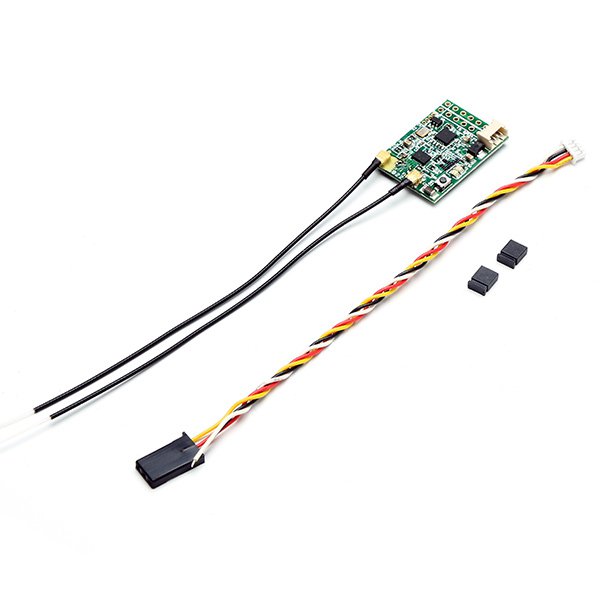

FrSky X4R-SB 2.4G 16CH ACCST Telemetry Full Range Receiver
Product Specifications:
Dimension: 40x22.5x6mm
Weight: 5.8g / 5g (naked)
Number of Channels: 16CH
Operating Voltage Range: 4V-10.0V
Operating Current: 100mA@5V
Operating Range: Greater than 1.5km (Full Range) !
Tech Note: This is Naked Receiver. Does not have a casing.
Compatibility: FrSky Taranis, Taranis Plus, & XJT module (Not suitable for EU version)
Great Features !
- Firmware Upgradeable
- FrSky's X4R-SB receiver features 3 PWM outputs (normal servo) and 1 Sbus port that carries all 16 channels. Plus the exciting new Smart Port and a traditional A2 port are all located on the side port of the receiver. A FrSky FBVS can be connected to the A2 port for simple voltage monitoring.
- Smaller than the X6R, but still packing 16 channels and the new Smart Port that supports the new hubless digital sensors! Or, connect the new vario, and then connect the old hub to use existing analog sensors.
- A common question is what can the SBus port do. First off, you can connect it to many flight controllers via a single connection, and now you have access to all 16 channels. Or, you can use something like the FrSky Sbus Decoder, this will allow you to add 4 normal servo outputs (pwm). You can also connect Sbus servos directly to the Sbus line. Just "Y" in as many Sbus devices you need.
Ships:
USPS 3-6 Business Days From U.S. to U.S. destinations only
Insured Priority Express Mail 6-12 Business Days U.K. and most other destinations.
Package Includes:
1 FrSky Naked X4R-SB Receiver
Product Specifications:
Dimension: 40x22.5x6mm
Weight: 5.8g / 5g (naked)
Number of Channels: 16CH
Operating Voltage Range: 4V-10.0V
Operating Current: 100mA@5V
Operating Range: Greater than 1.5km (Full Range) !
Tech Note: This is Naked Receiver. Does not have a casing.
Compatibility: FrSky Taranis, Taranis Plus, & XJT module (Not suitable for EU version)
Great Features !
- Firmware Upgradeable
- FrSky's X4R-SB receiver features 3 PWM outputs (normal servo) and 1 Sbus port that carries all 16 channels. Plus the exciting new Smart Port and a traditional A2 port are all located on the side port of the receiver. A FrSky FBVS can be connected to the A2 port for simple voltage monitoring.
- Smaller than the X6R, but still packing 16 channels and the new Smart Port that supports the new hubless digital sensors! Or, connect the new vario, and then connect the old hub to use existing analog sensors.
- A common question is what can the SBus port do. First off, you can connect it to many flight controllers via a single connection, and now you have access to all 16 channels. Or, you can use something like the FrSky Sbus Decoder, this will allow you to add 4 normal servo outputs (pwm). You can also connect Sbus servos directly to the Sbus line. Just "Y" in as many Sbus devices you need.
Ships:
USPS 3-6 Business Days From U.S. to U.S. destinations only
Insured Priority Express Mail 6-12 Business Days U.K. and most other destinations.
Package Includes:
1 FrSky Naked X4R-SB Receiver
