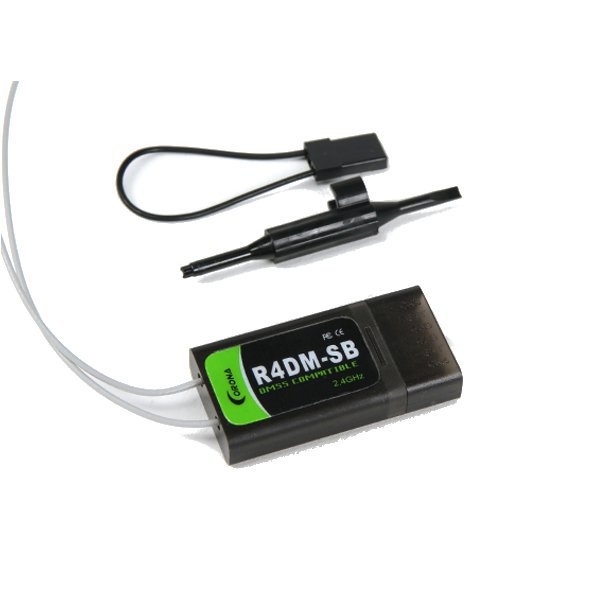

Corona R4DM-SB 2.4G 4CH DMSS Compatible Receiver With S.Bus
10 available
Details
Shipping: Australia: $7.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Corona R4DM-SB 2.4G 4CH DMSS Compatible Receiver With S.Bus
When Small and Range Matters !
Brief Description:
This Corona R4DM-SB is a 2.4GHz DMSS compatible receiver that is designed to use with JR DMSS 2.4GHz transmitters, such as XG6,XG7,XG8 ,XG11 and XG14 under DMSS protocol mode.
Manufacture Specifications:
Product Brand : Corona
Product Name: R4DM-SB
Channels: 4
Modulation: DMSS
Band: 2.4GHz
Weight: 7g
Voltage Range: 3.6 ~ 8.5V
Operating Current: 60mA max, 35mA under load
Operating Temperature: -10~70 degrees C
Latency: 13 ~ 14ms
Sensitivity: -96dBm
Features:
Full range receiver
4 Channels - throttle, aileron, rudder, elevator
Supports S.BUS connectivity
For use with JR DMSS transmitters
Lightweight and compact weighing in at just 7 grams
Fail safe programmable
Great feature with LED Status Lights :
Red LED on,Green LED off, No signal searched
Red LED off,Green LED solid,Signal is very good
Red LED off,Green LED flash,Signal is not very good
Red LED off,Green LED off-flash,Signal is weak
Priority Direct Mail 6-9 business days U.S., U.K. ,Australia and other destinations.
Package Includes:
1 Corona R4DM-SB Receiver
