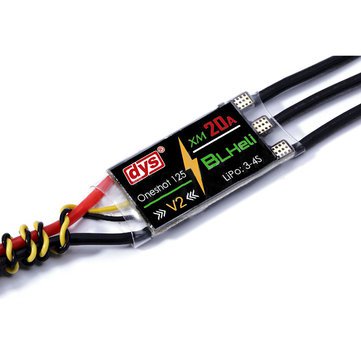

DYS XM20A V2 BLHeli mini 20A ESC Standard Version For Racer Drone Electronic Speed Controller
More than 10 available
Details
Shipping: Australia: $7.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
DYS XM20A V2 BLHeli mini 20A ESC Standard Version For Racer Drone Electronic Speed Controller
Brief Description:
Product Brand : DYS
Product Name: ESC
Input voltage: 3-4s Lipo
BEC: NO
Size(mm): 24Lx14Wx4.5H
Type: BLHeli Bootloader & Firmware
Weight: 5.8g
Great Features:
+ Silabs F396, Oneshot125/Oneshot42/Multishot enabled
+ Upgraded version of the SN series with advanced processor, basic frequency up to 50MHz, and faster overall processing capacity, to better support high KV motors
+ Designed for quick multi-rotor throttle response
+ Twisted pair cable is used to deliver throttle signal, reducing signal cross talk while further stabilizing copper wire transmission
+ New miniaturization and ultra-low resistance MOSFET, powerful flow resistance, and professional MOS Drive chips improve efficiency
+ Newly designed PCB board improves impact resistance.
+ Sub-miniaturization design reduces weight while still providing a high performance filtering capacitor
+ Refresh rate of throttle signal up to 500Hz, compatible with all modern flight controllers, including the Naze32 Rev6 and SP Racing F3
+ Ultra-high speed Oneshot125 with 3000Hz refresh rate provides quick, smooth throttle response
+ Fully programmable via USB port, with two-way and 3D modes for high speed racing and acrobatics
+ Designed for high KV power racing motors.
+ Small size and easier installation.
+ Matched with the new DYS BX1306 and MR2204/ 2205-2300KV brush-less racing motors.
Priority Direct Mail 6-12 Business Days U.S.,U.K. & Australia
Insured Standard Registered Shipping 7-20 Business Day Delivery most other Destinations.
Package Includes:
1 ESC
