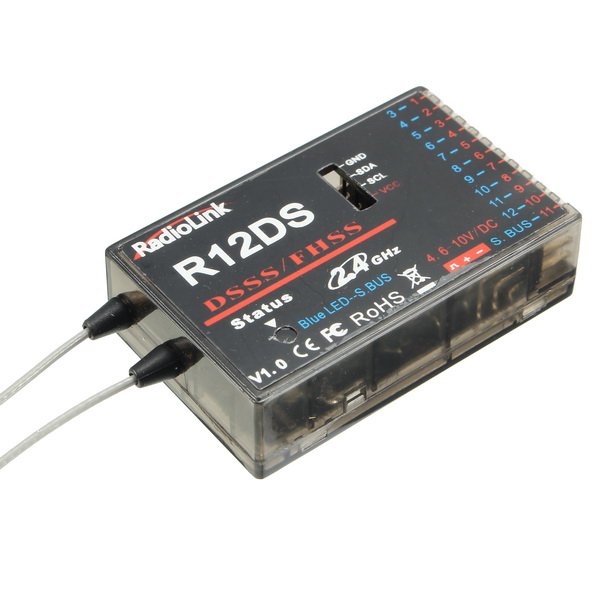

Radiolink R12DS 2.4G 12CH FHSS DSSS Spread Spectrum Dual Antenna Receiver
9 available
Details
Shipping: Australia: $7.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Radiolink R12DS 2.4G 12CH FHSS DSSS Spread Spectrum Dual Antenna Receiver
Brief Description:
Product Brand : Radiolink
Product Name: R12DS 2.4G 12CH Dual Antenna Receiver
Channels: 12 channels,output 12 channels signal, support S-BUS and PWM signal output synchronously.
Working voltage: 4.8-10V
Working current: 38-45mA(input voltage: 5V)
Size: 50x31.5x14.5 MM
Weight: 14g
Receiver integrate telemetry sensor including signal strength and voltage. Support extended engine voltage telemetry module PRM-01 and module PRM-02 can feedback GPS info, Speed, voltage etc. on AT9/AT9S/AT10/AT10II display when work with flight controller APM or PIX.
Resolution: 4096 section precision, 0.25us per section, servo anti-shake rudder.
Control distance: about 4 kilometers air(Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).
Tech. Notes:
1.Put the transmitter and the receiver close to each other within 1 meters.
2.Turn on the transmitter, then power on the R12DS.
3.Connect CH3 of R12DS to ESC.
4.There is a black button on the R12DS, use a thin stick press the button twice in two seconds, receiver light starts blinking, after about blinking 8 times, match code success and receiver signal LED always on!
Priority Direct Mail 6-12 Business Days U.S.,U.K. & Australia
Insured Standard Registered Shipping 7-20 Business Day Delivery most other Destinations.Express 4-8 Business Days is available.Email us for latest rates.
Package Includes:
1 Radiolink R12DS 2.4G 12CH Dual Antenna Receiver
Brief Description:
Product Brand : Radiolink
Product Name: R12DS 2.4G 12CH Dual Antenna Receiver
Channels: 12 channels,output 12 channels signal, support S-BUS and PWM signal output synchronously.
Working voltage: 4.8-10V
Working current: 38-45mA(input voltage: 5V)
Size: 50x31.5x14.5 MM
Weight: 14g
Receiver integrate telemetry sensor including signal strength and voltage. Support extended engine voltage telemetry module PRM-01 and module PRM-02 can feedback GPS info, Speed, voltage etc. on AT9/AT9S/AT10/AT10II display when work with flight controller APM or PIX.
Resolution: 4096 section precision, 0.25us per section, servo anti-shake rudder.
Control distance: about 4 kilometers air(Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).
Tech. Notes:
1.Put the transmitter and the receiver close to each other within 1 meters.
2.Turn on the transmitter, then power on the R12DS.
3.Connect CH3 of R12DS to ESC.
4.There is a black button on the R12DS, use a thin stick press the button twice in two seconds, receiver light starts blinking, after about blinking 8 times, match code success and receiver signal LED always on!
Priority Direct Mail 6-12 Business Days U.S.,U.K. & Australia
Insured Standard Registered Shipping 7-20 Business Day Delivery most other Destinations.Express 4-8 Business Days is available.Email us for latest rates.
Package Includes:
1 Radiolink R12DS 2.4G 12CH Dual Antenna Receiver
