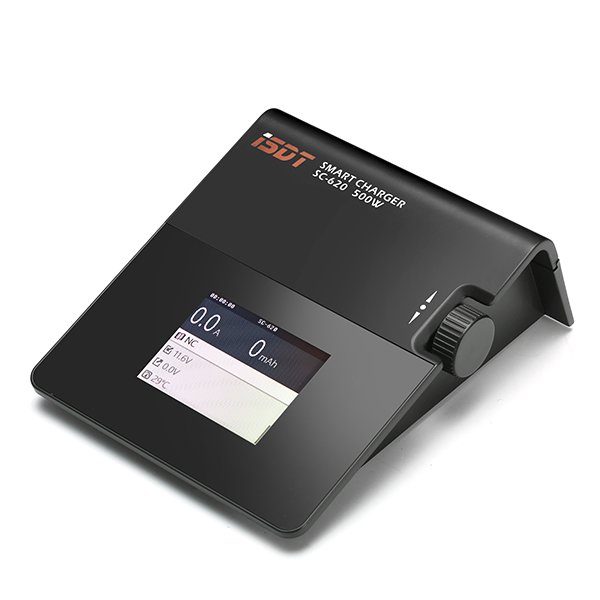

iSDT SC-620 500W 20A MINI Smart LCD Battery Balance Charger
8 available
Details
Shipping: Australia: $9.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
iSDT SC-620 500W 20A MINI Smart LCD Battery Balance Charger
Package includes:
1 iSDT SC-620 500W 20A MINI Smart LCD Balance Charger
Manual
Product Description:
iSDT SC-620 Charger
Max power 500W,Max charge current 20A.
Product Specifications:
Input Voltage: DC9~30V
Output Voltage: 0~30V
Charge Current: 0.1~20.0A
Discharge Current: 0.1~5.0A
Max Charge Capacity: 500W
Max Discharge Capacity: 15W
Balanced Current: 1000mA/cell
Balanced Cells: 2-6S
USB Outout: 2.1A/5V
Supported Batteries: LiFe/Lilon/LiPo/LiHv(1-6S)
NiMH/Cd(1-18S)
b(1-12S)
Display: 2.4" 320x240 IPS LCD
Usage temperature: 0~40℃
Storage temperature: -20~60℃
Dimensions: 115x130x52 mm
Weight: 289g
2.4" IPS Display
262K colors Bright lit monitor,enhanced luminescence and contrast ratio,h saves power by 15%.
Equipped with RAM power saving refreshed and CABC back-light control,
back-light 30% power saving .
Up to 178°visible angle,cuts reflections on screen.
scOs developed just for smart battery charging
Colorful and bright UI design,optimized display information,makes setup & working status clear to read.
Quick & simple function menu design,reduces operating steps by up to 80%.
Supports online updates with PC,optimizing operation system .
ARM 32bit Hi-speed CPU
ARM Cortex-M4 32bit ultra fast calculations
Data processing capacity enhanced by 20 times
Powered by the ARM Cortex-M4, the SC-620 offers amazing speed with its 32-bit operation.This provides a 20-fold increase in data processing capacity when compared to traditional chargers.
Hi-converting efficiency,extreme power-volume ratio
High speed & efficiency synchronous power supply and high Purity aluminium alloy cooling fins is used to ensure excellent transformation
and reductions in heat,along with a high-speed mini-fan to provide active cooling with a 50% volume reduction and 300% power increase.
One-key shuttling
Simple and natural shuttling movements have created an elegant replacement for clumsy point-and-touch finger operations.
A single key is used for every function, providing ,precise operation.
Expedited USB Interface
Connect to USB,which will provide 5V/2A for phone charge
Supports multiple languages.
Well Designed
The thinnest part is only 4MM,meanwhile the output power is increased to 500W
Uses XT60 Plug for input & output,more widely and safely used.
Hi-speed fan & delicate air duct,enable it to shrink volume remarkably while guaranteeing adequate heat-sinking
Operation Instructions
Connect power supply, wait for initiation self-check to finish
Set parameters which is suitable for your battery through display and shuttle knob,smart and quick charging with SC-620.
Tech. Note:
Never insert or charge the battery "before starting" the charger !
We also sell a complete line of Accessories for this charger on our site.
Ships:
Insured Priority Express Mail 6-12 Business Days U.S.,U.K. and all other destinations.
U.S. Shipping Carrier USPS
English Manual: Emailed with order conformation email.
