Skyzone SKY02S V+ 3D 5.8G 48CH FPV Goggles With Transmitter Camera Head Tracking HD Port DVR

Skyzone SKY02S V+ 3D 5.8G 48CH FPV Goggles With Transmitter Camera Head Tracking HD Port DVR

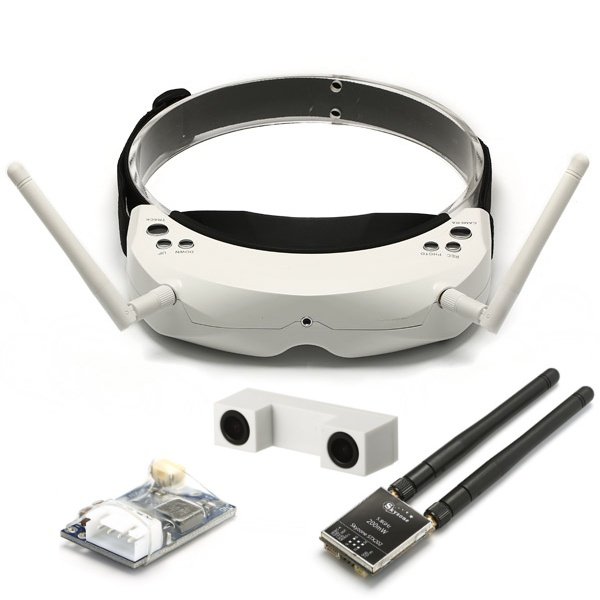

Package Includes:
1 Goggles
1 SCAM302 Camera
1 STX202 Transmitter
1 Futaba Data Cable
1 JR Data Cable
1 WFLY Data Cable
4 5.8G 2dBi Antenna
1 5P Camera Cable
1 3P TX Remote Control Cable
1 AV Cable
1 Power Cable
1 2P TX Power Cable

Brief Description:
Product Brand : Skyzone
Product Name: SKY02S 3D FPV Goggles Frame Color Black
Binocular Display:
FOV: 30 degree(Diagonal)
Resolution: 854x480(WVGA).1,229,760 color sub-pixels
Brightness: 350cd/㎡
Interpupillary Distance(IPD): 59-69MM Adjustable
Sensitivity: -90dBm±1dBm
Antenna: SMA 50ohm
Front Camera: FOV: 60 degree(Diagonal)
Resolution: 640x480(VGA)
Focal Length: f=4.0mm
F/NO:=2.8
Head Tracker:
Sensor: Magnetic,Inertial and gyro
Output: PPM 8CH, Optional 5‐6CH,5‐7CH,5‐8CH,6‐7CH,6‐8CH,7‐8CH

Micro SD: Support to 32GB
Compression: MJPEG, 30fps, AVI
Picture: JPEG
Record Rate: 6Mbps
Video Standard: NTSC/PAL
Video output level: 1.0Vp‐p Typ. / 75ohm
Audio output level: 1.0Vp‐p Typ. / 10Kohm
Div. AV OUT(3.5mm4P): Diversity Video, Audio output
EAR OUT(3.5mm3P): Stereo 16Ω/150mW
AV IN(3.5mm4P): Video ,Audio input
HDMI IN(Micro HDMI/D‐Type): HDMI 1.4 specification
1920x1080p60, 1920x1080p50, 1920x1080i60, 1920x1080i50,
1280x720p60, 1280x720p50, 576p, 576i, 480p, 480i,
PC Format(Not all)
DC IN: DC 7~26V/ 1A
Power Consumption: 12V input, 5.4W
Dimensions: 168(L)X92.5(W)X41(H)MM
Operating Temperature: 0 ℃~+60
SCAM302 Camera:
FOV: 120 degree(Diagonal)
F/NO: =2.3
Interpupillary Distance(IPD): 40mm
Resolution: 720x576
Video Standard: PAL
Video Output Level: 1.0Vp-p Typ./75ohm
Power Supply: DC5V/0.5A
Power Consumption: 1.6W
Dimension: 56.5x 17.8x14mm
Weight: 12g
Operating Temp.: 0℃~+60℃

STX202 Transmitter:
Wideband FM Modulate
Video Standard: NTSC/PAL
RF Output Impedance: 50ohm
RF Output Power: 22-24dBm(Typ.23dBm)
Video Input Level: 1.0Vp-p Typ./75ohm
Video Band Width: 8.0MHz
Audio Input Level: 2.0Vp-p Typ./10Kohm
Audio Carrier Frequency: 6.5MHz
Power Consumption: 5V input 5.5W
Dimension: 38x 32x8.9mm
Weight: 14g
Operating Temp.: 0℃~+70℃

Preset Frequency: CH1 5733M/5771M, CH2 5752M/5790M, CH3 5809M/5847M, CH4 5828M/5866M
Frequency Band A 5865 5845 5825 5805 5785 5765 5745 5725
Frequency Band B 5733 5752 5711 5790 5809 5828 5847 5866
Frequency Band E 5705 5685 5665 5645 5885 5905 5925 5945
Frequency Band F 5740 5760 5780 5800 5820 5840 5860 5880
Frequency Band R 5658 5695 5732 5769 5806 5843 5880 5917

RF Mode:
3D Mode, only available under the RF mode.
2D Mode

Great Features:
Front Camera
Image Adjustment, can set the brightness, contrast, hue, sharpness etc.
With Head Tracking, pan and tilt
With DVR function, suggest you format the SD card the first time you use
Playback function
HDMI Input
AV Output/Input

Ships:
DHL or FEDX Express Shipping 5-8 Business Days U.S. all U.S. destinations
Express Priority Shipping 6-15 Business day delivery all other destinations.

I have both Black Frame and White. Leave Seller a message indicating color ! ! Black or White.
