$491.11
On Hold

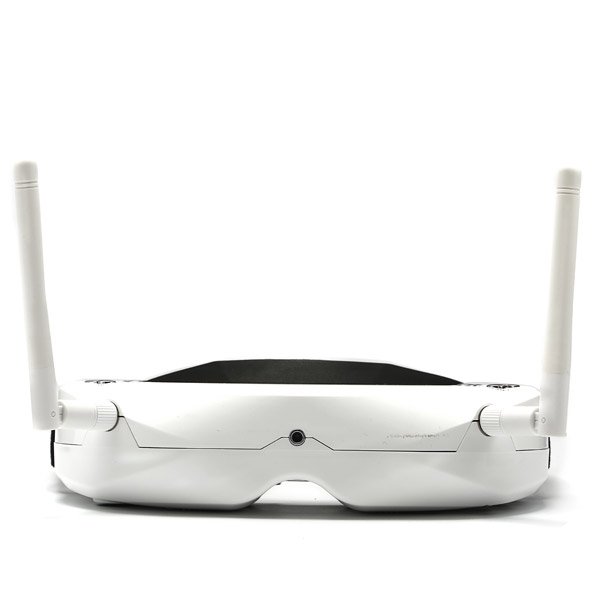

Skyzone SKY02S V+ 3D 5.8G 40CH FPV Goggles W/Head Tracking HDMI DVR Playback
7 available
Details
Shipping: Australia: $13.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Skyzone SKY02S V+ 3D 5.8G 40CH FPV Goggles With Head Tracking HDMI DVR Playback
Package Includes:
1 Goggles(White Frame)
1 Futaba Data Cable
1 JR Data Cable
1 WFLY Data Cable
4 5.8G 2dBi Antenna
1 AV Cable
1 Power Cable
Comprehensive Description:
Product Brand : Skyzone
Product name : SKY02S 3D FPV Goggles(White Frame)
Binocular Display: FOV: 30 degree(Diagonal)
Resolution: 854x480(WVGA).1,229,760 color sub-pixels
Brightness: 350cd/㎡
Interpupillary Distance(IPD): 59-69MM Adjustable
Sensitivity: -90dBm±1dBm
Antenna: SMA 50ohm
Front Camera: FOV: 60 degree(Diagonal)
Resolution: 640x480(VGA)
Focal Length: f=4.0mm
F/NO:=2.8
Head Tracker: Sensor: Magnetic,Inertial and gyro
Output: PPM 8CH, Optional 5‐6CH,5‐7CH,5‐8CH,6‐7CH,6‐8CH,7‐8CH
Micro SD: Support to 32GB
Compression: MJPEG, 30fps, AVI
Picture: JPEG
Record Rate: 6Mbps
Video Standard: NTSC/PAL
Video output level: 1.0Vp‐p Typ. / 75ohm
Audio output level 1.0Vp‐p Typ. / 10Kohm
Div. AV OUT(3.5mm4P): Diversity Video, Audio output
EAR OUT(3.5mm3P): Stereo 16Ω/150mW
AV IN(3.5mm4P): Video ,Audio input
HDMI IN(Micro HDMI/D‐Type): HDMI 1.4 specifications 1920x1080p60, 1920x1080p50, 1920x1080i60, 1920x1080i50, 1280x720p60, 1280x720p50, 576p, 576i, 480p, 480i
PC Format(Not all)
DC IN: DC 7~26V/ 1A
Power Consumption: 12V input, 5.4W
Dimensions: 168(L)X92.5(W)X41(H)MM
Operating Temperature: 0 ℃~+60
Preset Frequencies: CH1 5733M/5771M , CH2 5752M/5790M,
CH3 5809M/5847M , CH4 5828M/5866M
Frequency Band A 5865 5845 5825 5805 5785 5765 5745 5725
Frequency Band B 5733 5752 5711 5790 5809 5828 5847 5866
Frequency Band E 5705 5685 5665 5645 5885 5905 5925 5945
Frequency Band F 5740 5760 5780 5800 5820 5840 5860 5880
Frequency Band R 5658 5695 5732 5769 5806 5843 5880 5917
RF Mode:
3D Mode, only available under the RF mode.
2D Mode
Some Great Features
Front Camera,great convenience
Image Adjustment, can set the brightness, contrast, hue, sharpness etc.
With Head Tracking, pan and tilt
With DVR function, we suggest you format the SD card the first time you use it.
Playback function
HDMI Input
AV Output/Input
Express Expedited Shipping 4-7 business days U.S.& U.K. Orders
Insured Standard Registered Shipping 7-20 day delivery other destinations.U.S. Shipping Carriers FED-X or DHL
