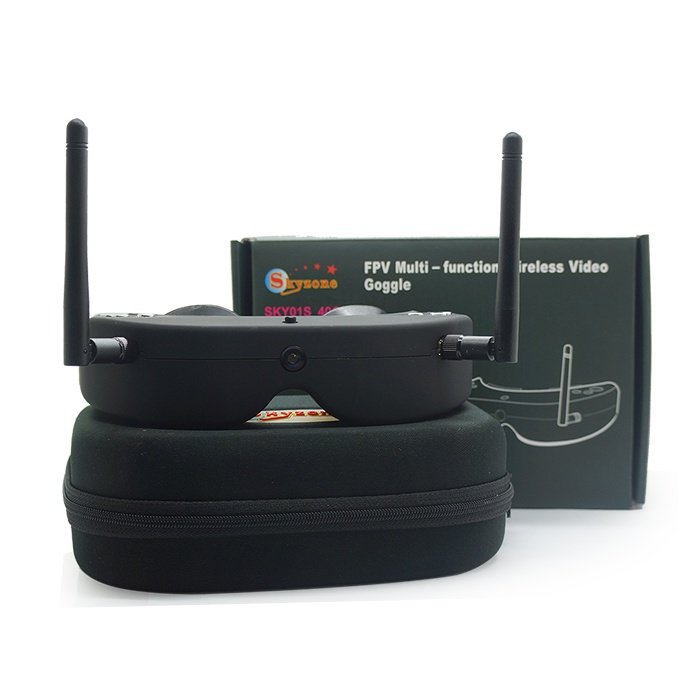

Skyzone V2 5.8G 40CH FPV Goggles With Race band Video Glasses Headset
6 available
Details
Shipping: Australia: $5.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Skyzone V2 5.8G 40CH FPV Goggles With Race band Video Glasses Headset
This new version Skyzone FPV Goggles increases by 8 channels, mainly the race band(37MHz difference between the adjacent channels). This allows more racers to fly at the same time on the same band.
Great smooth head tracking too.
Brief Description:
Product Brand Name: Skyzone
Product Name: Skyzone 01 V2
Dimensions: 168(L)x92.5(W)x41(H)mm(not including prominent part)
Weight: 344g(not including carry case)
Operating temperature: 0℃~+55℃
Binocular Display Specifications:
FOV: 30 degrees(Diagonal)
Resolution: 854x480(WVGA)
Brightness: 350cd/㎡
Interpupillary distance(IPD): 60-68mm adjustable
Wireless Receiver Specifications:
ISM 5.8G 40CH
Sensitivity: -90dBm±1dBm
Antenna port: 2xSMA, 50ohm
Video standard: NTSC/PAL
Video output level: 1.0Vp-p Typ/75ohm
Audio output level: 1.0Vp-p Typ/10Kohm
Front camera Specifications:
FOV: 120 degrees(Diagonal)
Resolution: 640x480(VGA)
Focal length: f=0.95mm
F/NO: F/NO=2.0
Head Tracker Specifications:
Sensor: Magnetic, Inertial and gyro
Output: PPM 8CH, optional 5-6CH, 5-7CH, 5-8CH, 6-7CH, 6-8CH, 7-8CH
AV Port Specifications:
Div. AV OUT(3.5mm4P): Diversity video, audio output
EAR OUT(3.5mm3P): 32Ω/75mW or 16Ω/105mW, with volume control
AV IN(3.5mm4P): Video, audio inout
Features:
IPD adjustable
Built-in wide angle front view camera
Built-in dual-axis head tracking system
High resolution: 854x480(WVGA), 1230K pixels
High sensitivity 5 bands total 40 channels receiver
Wide voltage supported: 7V-28V(2S-6S lipo battery)
Priority Direct Mail 6-9 business days U.S. & Australia Orders
Standard Registered Air Shipping 7-20 day delivery U.K. and other destinations.Faster shipping times are available for additional charge.
Package Includes:
1 Skyzone FPV goggles V2
2 Antenna
1 Futaba data cable
1 JR data cable
1 WFLY data cable
1 AV cable
1 Power cable
1 Carry case
