Spedix Power Distribution Board 5V 12V DC for 250-300 Multirotors
10 available
Details
Shipping: Australia: $7.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

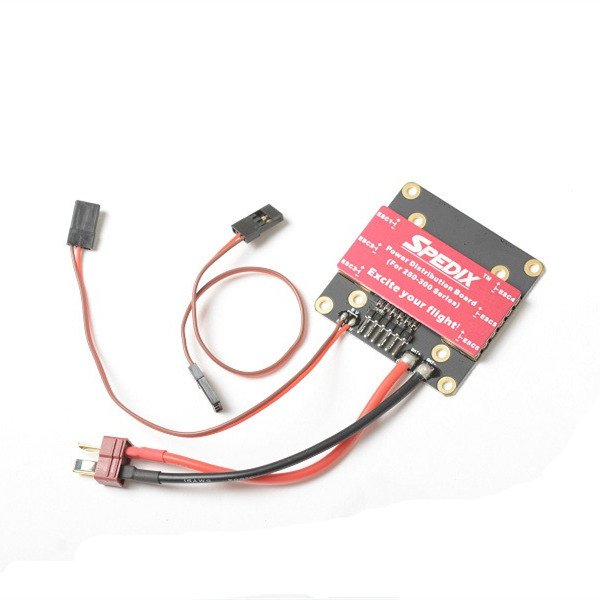

Spedix Power Distribution Board 5V 12V DC for 250-300 Multi-rotors
This board has 6 sets of 2mm bullet connectors to power up 6 motors, and step down regulator to provide 5V DC and 12V DC power for receiver, flight controller, and FPV equipment.
The 5V output cable is soldered to the board. There are two options to select the 12V power source by connect to different pins on the board. The manufacturer suggests to use +12V and -12V pins next to the main power cable for 4S LiPo batteries, and BAT - and BAT+ pins next to 5V output cable for 3S LiPo packs.
Brief Description:
Product Brand : Spedix
Product Name: Power Distribution Board
Input: 3-4S LiPo
Output: 5V@3A and 12V@3A
Dimensions: 50x50x5.5mm
Weight:22.5g(excluding aluminum-plate)
Suitable for: 250-300 size multi-rotors,
Package includes:
1 Power distribution board
1 JR style servo cable
Does not include the quadcopter. . .
This board has 6 sets of 2mm bullet connectors to power up 6 motors, and step down regulator to provide 5V DC and 12V DC power for receiver, flight controller, and FPV equipment.
The 5V output cable is soldered to the board. There are two options to select the 12V power source by connect to different pins on the board. The manufacturer suggests to use +12V and -12V pins next to the main power cable for 4S LiPo batteries, and BAT - and BAT+ pins next to 5V output cable for 3S LiPo packs.
Brief Description:
Product Brand : Spedix
Product Name: Power Distribution Board
Input: 3-4S LiPo
Output: 5V@3A and 12V@3A
Dimensions: 50x50x5.5mm
Weight:22.5g(excluding aluminum-plate)
Suitable for: 250-300 size multi-rotors,
Package includes:
1 Power distribution board
1 JR style servo cable
Does not include the quadcopter. . .
