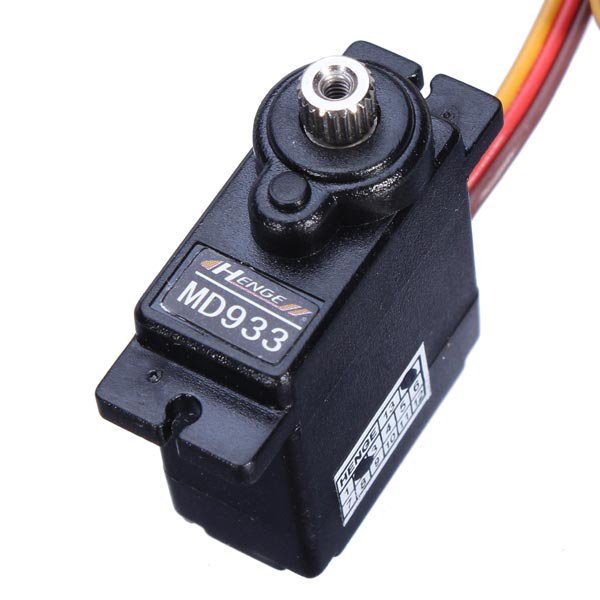

Tarot MD933 Metal Gear Swashplate Servos TL2349
10 available
Details
Shipping: Australia: $7.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Brief Description:
Product Name: Swashplate Servos
Product Brand: Tarot
Color: Black
Weight : 12g
Bearings : metal
Voltage: 4.5-6.0V
Current :50-150mA
Cable length : 21cm
Stall current : 600mA
Dead band width :less than 4usec
Size : 22.5 x 11.5x 24.6mm
Gear : four metal , 1 nylon gear
Torque : 2.0kg.cm 6V 1.8kg.cm 4.8V
Working temperature : -20℃ to +60℃
Operating speed : 0.10 sec/60℃ 6V 0.12 sec/60℃ 4.8V
Angle deviation: center error less than 0.5 degrees , about 40 degrees error less than 0.5 degrees
Features:
1.Rapid response control , response time less than 4usec.
2.Raw materials produced by the Japanese housing .
3.Using metal gears , gear higher precision servo output error is very small.
4.For the 450 level swash plate control electric helicopter and fixed-wing aircraft.
5.High coordination center error less than 0.5 degrees , about 40 degrees error less than 0.5 Degrees, 60 degrees error less than 0.5 degrees.
6.Unique overload current protection , stall protection feature allows the motor and Electronic components from being burned.
7.Using the FUTABA same level of high-performance motor , the steering gear to live longer ,The test proved to be high-speed and continuous operation 50 hours.
Priority Direct Mail 6-9 business days U.S. , U.K. & Australia Orders
Insured Standard Registered Air Shipping 7-20 day delivery most other destinations
.
Package includes:
1 Swashplate Servo
1 Cable
5 Gear
