ZTW Gecko Series 45A Speed Controllers ESC w/ 5A 8A Adjustable SBEC
8 available
Details
Shipping: Australia: $9.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

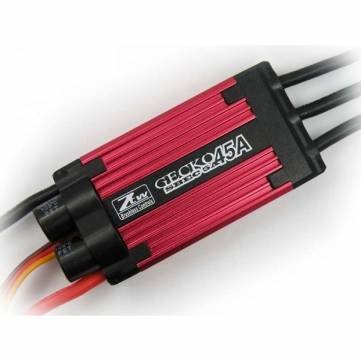

Gecko Series 45A Speed Controllers ESC w/ 5A 8A Adjustable SBEC
Something ZTWabout this product:
ZTW GECKO SERIES Airplane/Heli ESCs are competition-grade speed controllers from one of the most trusted RC electronics manufacturers in the industry. New Features found in Gecko Series ESCs include PC data logging, firmware upgradability, and a larger SBEC. Best of all, Gecko Series ESCs come standard with the ZTW quality, performance, and reliability you have come to trust.
The high power SBEC found in ZTW Gecko Series ESCs has been specifically designed for extreme aerobatics and therefore has the capability to support the higher momentary peak demand loads to eliminate the possibility of unwanted shutdowns, and is also capable of supporting continuous simultaneous multiple servo operations
Brief Description:
Brand:ZTW
Item: Gecko Series ESC
45A SBEC 5A ESC
Output: 45A continuous, 65A burst for 10 seconds
Input voltage: 2-6s LiPo; 5-18 cell Ni-XX
SBEC output: 5.0v/6.0v adjustable @ 5A (switching)
Weight: 59g
Dimensions: 59 x 33 x 11.5mm
Features:
-Firmware upgradable via PC interface
-High SBEC current output: 5A continuous
-Adjustable SBEC voltage up to 6.0v (up to 8.4v on 65A and above models)
-Extremely low internal resistance
-Smooth and accurate throttle linearity
-Power arming protection, over-heat protection, low-voltage protection and lost signal protection
-Supports high RPM motors
-Advanced governor mode and soft start
-Optional programming card & PC USB interface available
Tips:
Brake setting (off / soft / mid / hard -- default: off)
Battery type: (Ni-XX / LiPo / LiFe -- default: LiPo auto detect)
Cut-off voltage threshold (2.8V 50% / 3.0V 60% / 3.2V 65% / No protection -- default: 3.0V 60%)
Factory default setup reset
Timing settings (auto / 2° / 8° / 15° / 22° / 30° -- default: auto)
SBEC Voltage Output (5.0v / 6.0v -- default: 5.0v)
Governor mode: (RPM off / 1st Soft Start / 2nd Soft Start / Gov Mode 1 / Gov Mode 2 -- default: RPM off)
Motor rotation: (forward / reverse -- default: forward)
Start up (Low / Mid / High-- default: 30%)
LVC cut-off type: (reduce gradually / cut-off -- default: reduce gradually)
Currently Ships:
Express Priority Shipping 6-10 business U.S. & U.K.destinations.
U.S. Shipping Carriers USPS or DHL.
Insured Standard Registered Air Shipping 7-20 day delivery all other destinations.
Package Includes:
1 45 amp ZTW Gecko Series ESC
