$809.60
On Hold
Futaba 2.4G 14CH FASSTest 14SG Transmitter With R7008SB HV Receiver
5 available
Details
Shipping: Australia: $13.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

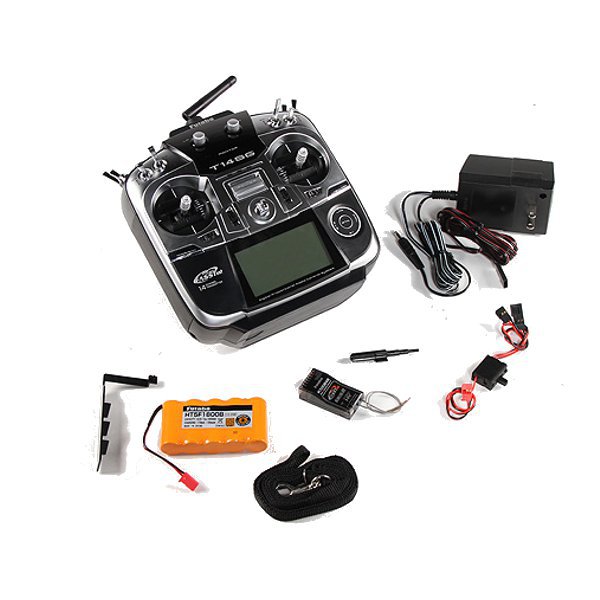

Futaba 2.4G 14CH FASSTest 14SG Transmitter With R7008SB HV Receiver
Package Includes:
1 14SG transmitter
1 R7008SB HV receiver
1 Transmitter battery
1 Charger
1 Neck strap
1 Switch harness
Instruction Manual
Processing time is 4-8 days for this radio.Hot sellers and all are checked before shipping.
Specification Of 14SG Transmitter:
Brand Name: Futaba
Mode: Left hand throttle,right hand throttle(optional)
Channel: 14
Resolution: 128 x 64
Communication Mode: FASSTest / FASST / S-FHSS(switch)
Power Supply: 6.0V Ni-MH battery HT5F1800B
Features Of Transmitter:
• Channels: 12 proportional, 2 switched
• Compatible with FASSTest, FASST and S-FHSS protocols
• FASSTest telemetry – compatible with Futaba telemetry sensors (sold separately)
• Free user-updatable software
• 30-model memory
• 10-character user naming
• 10-character model naming
• Airplane, helicopter and glider programming
• Large, 1.75” x 3” backlit LCD screen with 128 x 64 resolution
• SensorTouch™ programming
• Compatible with secure digital memory cards for external storage of model setups and software • updates (32MB-2GB or HC (High-Capacity) 4GB-32GB)
• Left and right assignable slider switches
• Two assignable rotary knobs
• Six assignable three-position switches
• One assignable momentary two-position switch
• One assignable two-position switch
• Comfortable rubber grips on the sides and back
• Wide top switch spacing
• Adjustable stick tension
• Dual ball bearing gimbals
• 4 vibration warning types
• Home/Exit; User Menu/Servo Monitor buttons
• Audio earphone jack (for telemetry alarms)
• 6V 1800mAh NiMH battery pack
• User stick calibration
• Trainer system
• Servo speed adjust
• 5 programmable mixes
• V-tail, Ailvator, winglet, motor mixing
• Trim mix
• Logic switch (condition switch only)
• Internal programmer for S.Bus servos
• User menu
• Servo monitor (neutral and moving tests)
• 2 count up/countdown timers
• Integral timer
• Model timer
• Quick model select
Airplane Features:
7 different wing types
3 different tail types
2 different rudder types
Flap setting menu
Differential ailerons
Aileron to camber flap mixing
Aileron to brake flap mixing
Aileron to rudder mixing
Rudder to aileron mixing
Rudder to elevator mixing
Camber mixing
Elevator to camber mixing
Camber flap to elevator mixing
Snap roll mixing
Airbrake mixing
V-Tail mixing
Ailvator
Winglet
Motor mixing
Fuel mixture mixing
Gyro mixing
Throttle curve (5-point)
Pitch curve (5-point)
Idle down
Helicopter Features:
6 swash plate types
Pitch/throttle curves (5-point)
Throttle hold
Swash mix
Throttle mix
Pitch to rudder mixing
Fuel mixture
Gyro (Flybarless support)
Governor (700-3500 rpm)
Hover pitch
Hover throttle
High/low pitch
Swash AFR
Swash setting (mixing rate, linkage compensation, speed compensation)
Swash ring (electronic)
Throttle cut
Glider Feature:
11 different wing types
3 different tail types
2 different rudder types
Flap setting menu
Differential ailerons
Aileron to camber flap mixing
Aileron to brake flap mixing
Aileron to rudder mixing
Rudder to aileron mixing
Rudder to elevator mixing
Camber mixing
Elevator to camber mixing
Camber flap to elevator mixing
Butterfly mixing
Butterfly to elevator mixing
Specification Of R7008SB Receiver:
Modulation: FASST
RX Voltage Range: 3.5-8.4V
Current drain: 75mA
External Voltage Range: 0 - 70V DC
Size: 24.9x47.3x14.3mm
Weight: 10.9g
Features Of Receiver:
• Bi-directional communication with a FASST
Futaba transmitter using the S.Bus2 port
• Standard PWM output ports and S.Bus output ports
• Extra voltage port, 0-70V DC
• PCB LED quick connection board
• Optional telemetry sensors may be connected to the S.Bus2
• Small and lightweight
Currently Ships:
Expedited 5-8 business Days
U.S. Shipping Carriers FED-X or DHL
Package Includes:
1 14SG transmitter
1 R7008SB HV receiver
1 Transmitter battery
1 Charger
1 Neck strap
1 Switch harness
Instruction Manual
Processing time is 4-8 days for this radio.Hot sellers and all are checked before shipping.
Specification Of 14SG Transmitter:
Brand Name: Futaba
Mode: Left hand throttle,right hand throttle(optional)
Channel: 14
Resolution: 128 x 64
Communication Mode: FASSTest / FASST / S-FHSS(switch)
Power Supply: 6.0V Ni-MH battery HT5F1800B
Features Of Transmitter:
• Channels: 12 proportional, 2 switched
• Compatible with FASSTest, FASST and S-FHSS protocols
• FASSTest telemetry – compatible with Futaba telemetry sensors (sold separately)
• Free user-updatable software
• 30-model memory
• 10-character user naming
• 10-character model naming
• Airplane, helicopter and glider programming
• Large, 1.75” x 3” backlit LCD screen with 128 x 64 resolution
• SensorTouch™ programming
• Compatible with secure digital memory cards for external storage of model setups and software • updates (32MB-2GB or HC (High-Capacity) 4GB-32GB)
• Left and right assignable slider switches
• Two assignable rotary knobs
• Six assignable three-position switches
• One assignable momentary two-position switch
• One assignable two-position switch
• Comfortable rubber grips on the sides and back
• Wide top switch spacing
• Adjustable stick tension
• Dual ball bearing gimbals
• 4 vibration warning types
• Home/Exit; User Menu/Servo Monitor buttons
• Audio earphone jack (for telemetry alarms)
• 6V 1800mAh NiMH battery pack
• User stick calibration
• Trainer system
• Servo speed adjust
• 5 programmable mixes
• V-tail, Ailvator, winglet, motor mixing
• Trim mix
• Logic switch (condition switch only)
• Internal programmer for S.Bus servos
• User menu
• Servo monitor (neutral and moving tests)
• 2 count up/countdown timers
• Integral timer
• Model timer
• Quick model select
Airplane Features:
7 different wing types
3 different tail types
2 different rudder types
Flap setting menu
Differential ailerons
Aileron to camber flap mixing
Aileron to brake flap mixing
Aileron to rudder mixing
Rudder to aileron mixing
Rudder to elevator mixing
Camber mixing
Elevator to camber mixing
Camber flap to elevator mixing
Snap roll mixing
Airbrake mixing
V-Tail mixing
Ailvator
Winglet
Motor mixing
Fuel mixture mixing
Gyro mixing
Throttle curve (5-point)
Pitch curve (5-point)
Idle down
Helicopter Features:
6 swash plate types
Pitch/throttle curves (5-point)
Throttle hold
Swash mix
Throttle mix
Pitch to rudder mixing
Fuel mixture
Gyro (Flybarless support)
Governor (700-3500 rpm)
Hover pitch
Hover throttle
High/low pitch
Swash AFR
Swash setting (mixing rate, linkage compensation, speed compensation)
Swash ring (electronic)
Throttle cut
Glider Feature:
11 different wing types
3 different tail types
2 different rudder types
Flap setting menu
Differential ailerons
Aileron to camber flap mixing
Aileron to brake flap mixing
Aileron to rudder mixing
Rudder to aileron mixing
Rudder to elevator mixing
Camber mixing
Elevator to camber mixing
Camber flap to elevator mixing
Butterfly mixing
Butterfly to elevator mixing
Specification Of R7008SB Receiver:
Modulation: FASST
RX Voltage Range: 3.5-8.4V
Current drain: 75mA
External Voltage Range: 0 - 70V DC
Size: 24.9x47.3x14.3mm
Weight: 10.9g
Features Of Receiver:
• Bi-directional communication with a FASST
Futaba transmitter using the S.Bus2 port
• Standard PWM output ports and S.Bus output ports
• Extra voltage port, 0-70V DC
• PCB LED quick connection board
• Optional telemetry sensors may be connected to the S.Bus2
• Small and lightweight
Currently Ships:
Expedited 5-8 business Days
U.S. Shipping Carriers FED-X or DHL
